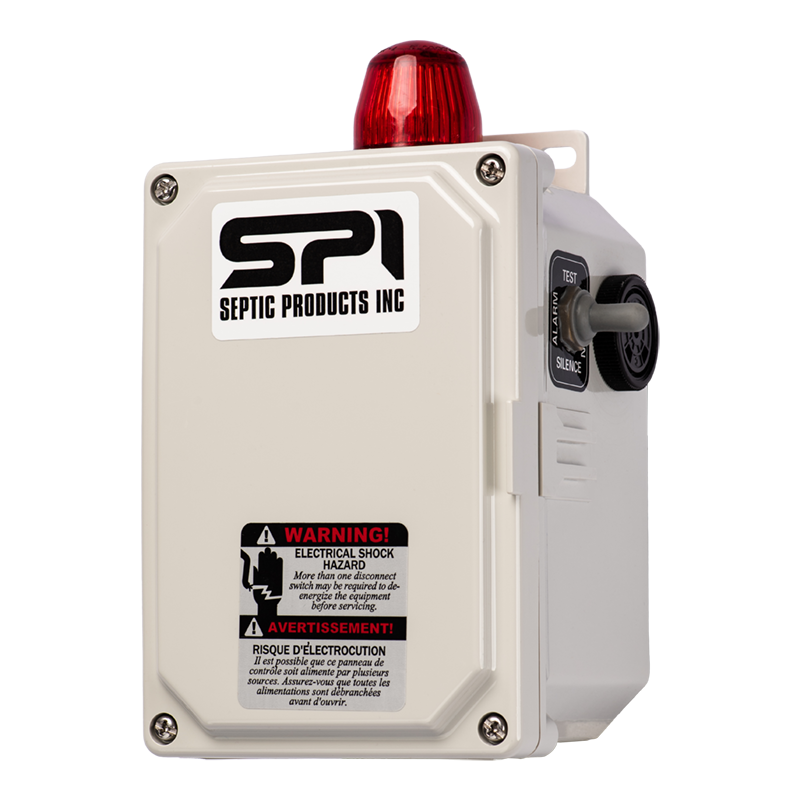

SPI – Observer 400 Indoor/Outdoor High Water Alarm – 10A405/SMD-41H-PC

Description

Indoor/outdoor alarm with large light, audible horn, 15′ mercury alarm float, and auxiliary dry contacts (High Level).

Features:

• NEMA 4X rated, durable, weather-resistant enclosure for indoor and outdoor use
• Automatic alarm reset, horn silence button, and alarm test button
• 360° visible alarm light
• Alarm horn sounds to 85 decibels at 10′
• Mercury alarm float switch included (15′ cord)
• Auxiliary dry contacts are standard
• SST mounting screws included
• UL-listed alarm system
• Two-year limited warranty
• Connection for pump float (circuit)

Tech Specs:

• Dimensions: 6.0″ x 4.0″ x 3.5″ (external mounting feet)
• Enclosure: NEMA 4X rated, durable, weather-resistant (water-tight)
• Horn: 85 db at 10′
• Weight: 3.5 lbs. with float
• Voltage: 120 VAC primary, 12 VAC secondary, 60 Hz (alarm condition 15 watts max)
• Float Switch Connection: Internal terminal strip
• Alarm Light: 360 degree visible
• Standard Auxiliary Contacts: 240 VAC, 5 amp max resistive/60 Hz
