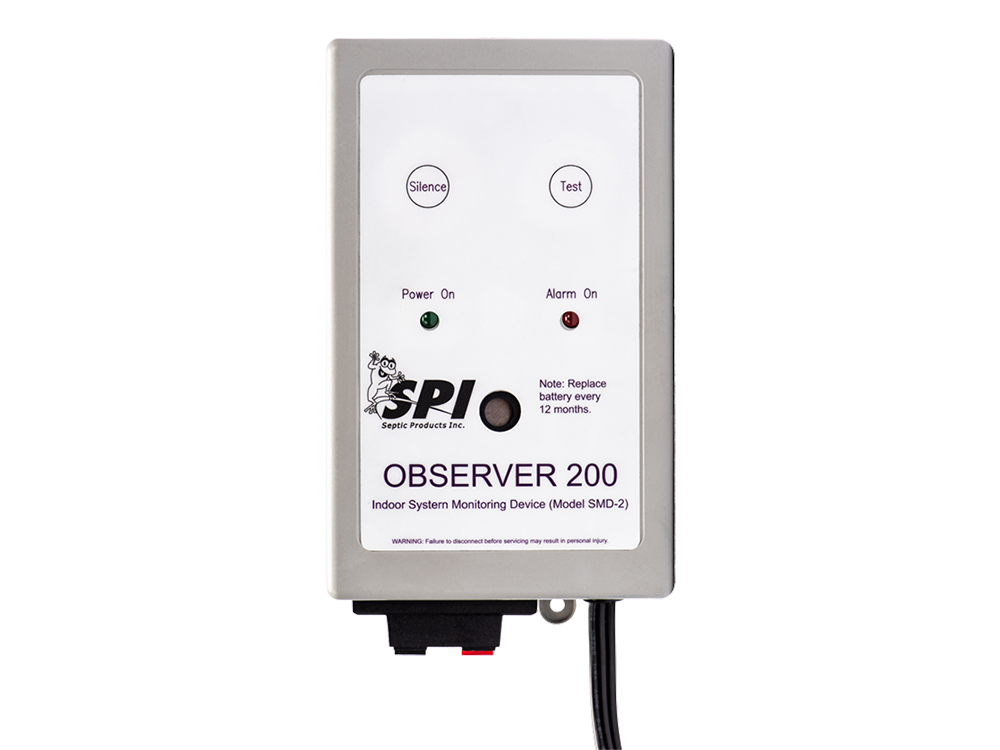

SPI – Observer 200 Indoor Alarm – 10A206-SMD-21HM-PC

Description

• Indoor alarm with audible and visual alarm, 15′ mechanical alarm float, battery back-up, 6′ power cord, auxiliary dry contacts, SST pipe clamp,
• and quick snap terminal connectors (High Level)
• Red “alarm” light, green “on” light, and 85-decibel horn at 10ft
• Mechanical alarm float switch included (15′ cord)
• Alarm test and horn silence button with auto reset – 120 VAC
• The alarm will continue to work even when the primary power fails due to our battery back-up feature
• Auxiliary dry contacts are standard
• External quick connect terminal block for easy float installation
• Two-year limited warranty
• Supply Voltage: 120V

Tech Specs:

• Dimensions: 6″ x 3-3/4″ x 2-1/2″
• Enclosure: NEMA 1 thermoplastic (external mounting feet)
• Horn: 85db at 10′
• Weight: 2.5 lbs. with float
• Voltage: 120 VAC primary, 9 VAC secondary, 60 Hz (alarm condition 2.5 watts max)
• Power Cord: 6 feet, 120 VAC
• Float Switch: 15′ mechanical float with tie strap (normally open)
• Float Switch Connection: Quick connect float connection. Does not apply power. Class two output, 12 VAC
• Standard Auxiliary Contacts: 240 VAC, 5 amp max resistive/60 Hz
