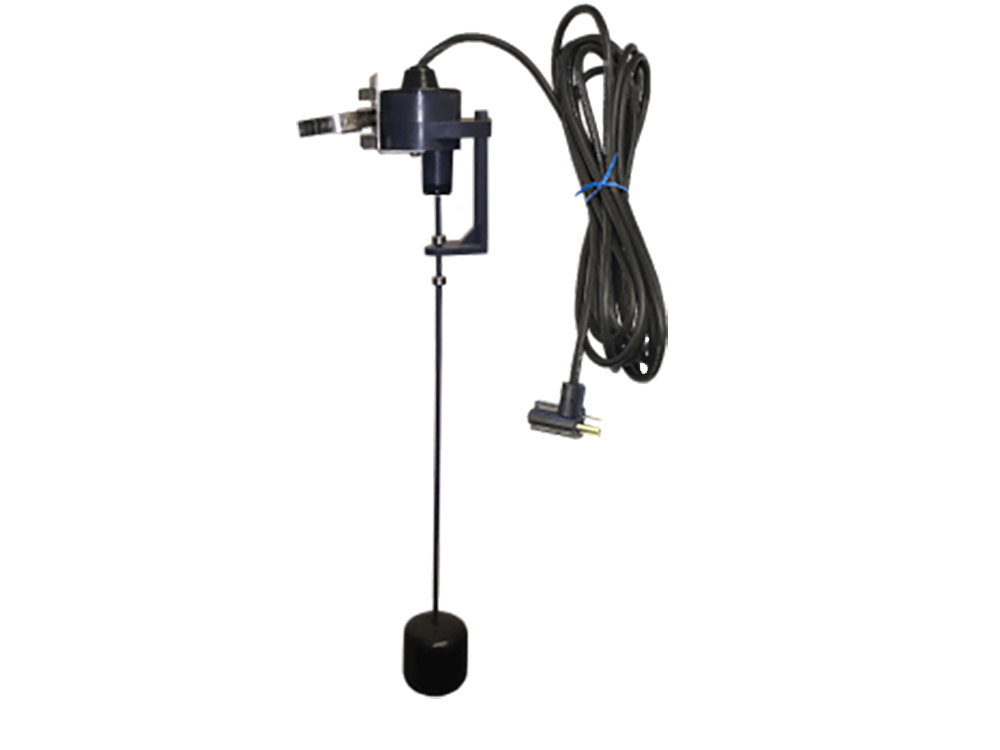

SPI – 20A208 – 30SVD2WP – V-Navigator – 30′ Vertical Mechanical Float Switch (240V) (w/ Plug)

Description

SPI – 20A208 – 30SVD2WP – V-Navigator – 30′ Vertical Mechanical Float Switch (240V) (w/ Plug)

Mechanically-activated, vertical float to directly control a pump
• Not sensitive to rotation or turbulence
• For use in water and sewage applications
• Designed to operate in confined areas
• Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 240 VAC
• Available for pump down applications
• 18″ and 24″ rod lengths available
• Adjustable pumping range of 1 to 6 inches
• 16-gauge, 2-conductor, SJOW water-resistant (CPE) material
• Max pump running current, 10 amps
• Max pump starting current, 59 amps
• 10′, 15′, 20′, or 30′ cord with piggyback plug
• Individually boxed and includes SST pipe mount assembly
• UL / CSA
• Three-year limited warranty
