SPI – 20A115-E – 20HMD2WP – E-Navigator Plus – 20′ Foam Filled Heavy-Duty Mechanical Pump Down Float Switch (240V) (Non-Weighted) (w/ Plug)

Description

SPI – 20A115-E – 20HMD2WP – E-Navigator Plus – 20′ Foam Filled Heavy-Duty Mechanical Pump Down Float Switch (240V) (Non-Weighted) (w/ Plug)

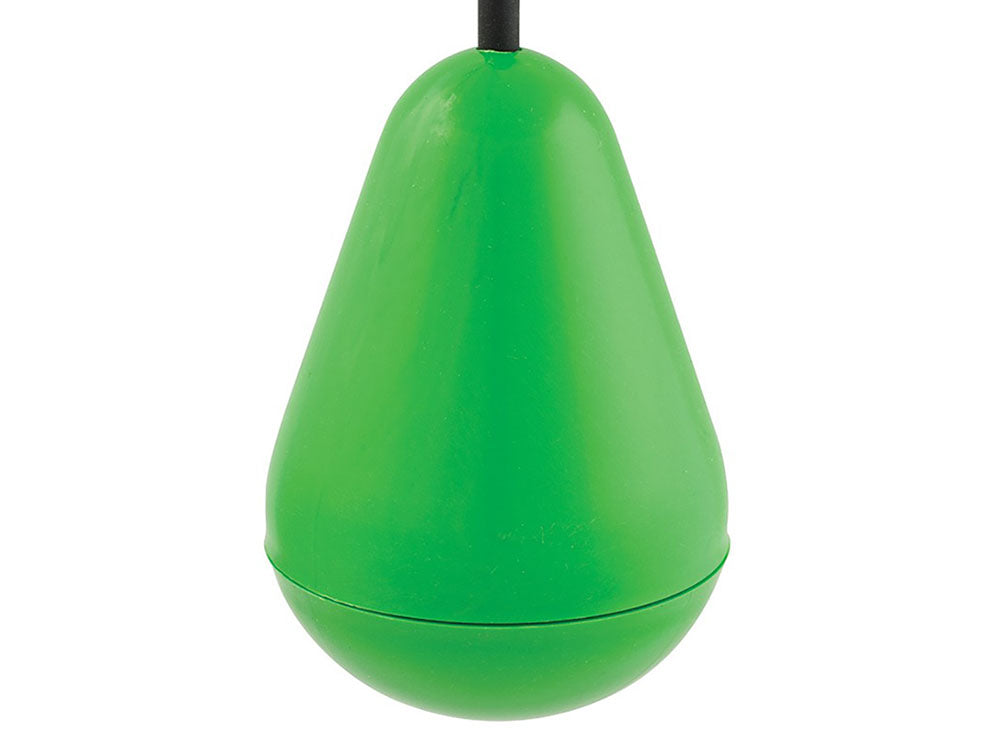

Mechanically-activated, wide-angle float to directly control a pump
• Not sensitive to rotation or turbulence
• For use in water and sewage applications
• Controls pumps up to 1 HP at 120 VAC and 2 HP at 240 VAC
• Available for pump up and pump down applications
• Adjustable pumping range of 6 to 36 inches
• 14 gauge, 2 conductor, SJOW water resistant (CPE) material
• Max pump running current, 15 amps
• Max pump starting current, 96 amps
• 10’, 15’, 20’, 30’, or 50’ cord with or without piggyback plug
• Individually boxed and includes SST pipe mount assembly
• UL / CSA
• Three-year limited warranty
