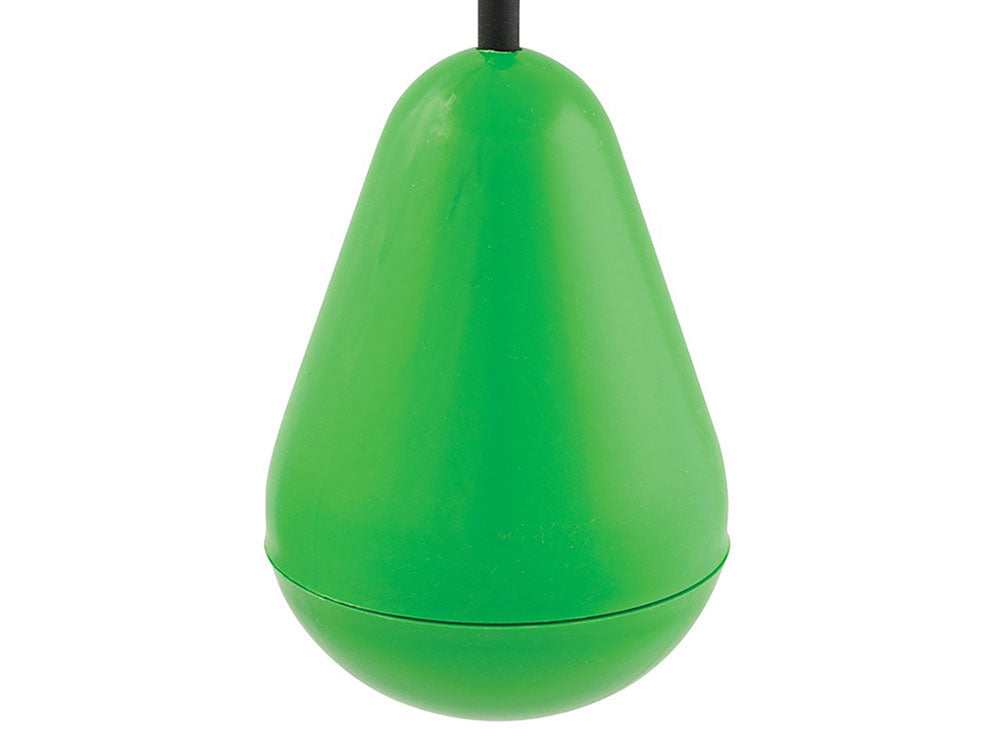

SPI – 20A014-E – 20SMD1WP-E – E-Nav – 20′ Standard Duty Pump Down Mechanical Float Switch (120V) (Non-Weighted) (w/ Plug)

Description

SPI – 20A014-E – 20SMD1WP-E – E-Nav – 20′ Standard Duty Pump Down Mechanical Float Switch (120V) (Non-Weighted) (w/ Plug)

Mechanically-activated, wide-angle float to directly control a pump
• Not sensitive to rotation or turbulence
• For use in water and sewage applications
• Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 240 VAC
• Available for pump up and pump down applications
• Adjustable pumping range of 6 to 36 inches
• 16-gauge, 2-conductor, SJOW water-resistant (CPE) material
• Max pump running current, 13 amps
• Max pump starting current, 59 amps
• 10′, 15′, 20′, 30′, or 50′ cord with or without piggyback plug
• Individually boxed and includes SST pipe mount assembly
• UL / CSA
• Foam filled mechanical float
• Three-year limited warranty
