Flomatic Valves – S3W09G – 6″ Model Sylax 3 Wafer Style with Gear

Description

Flomatic Valves

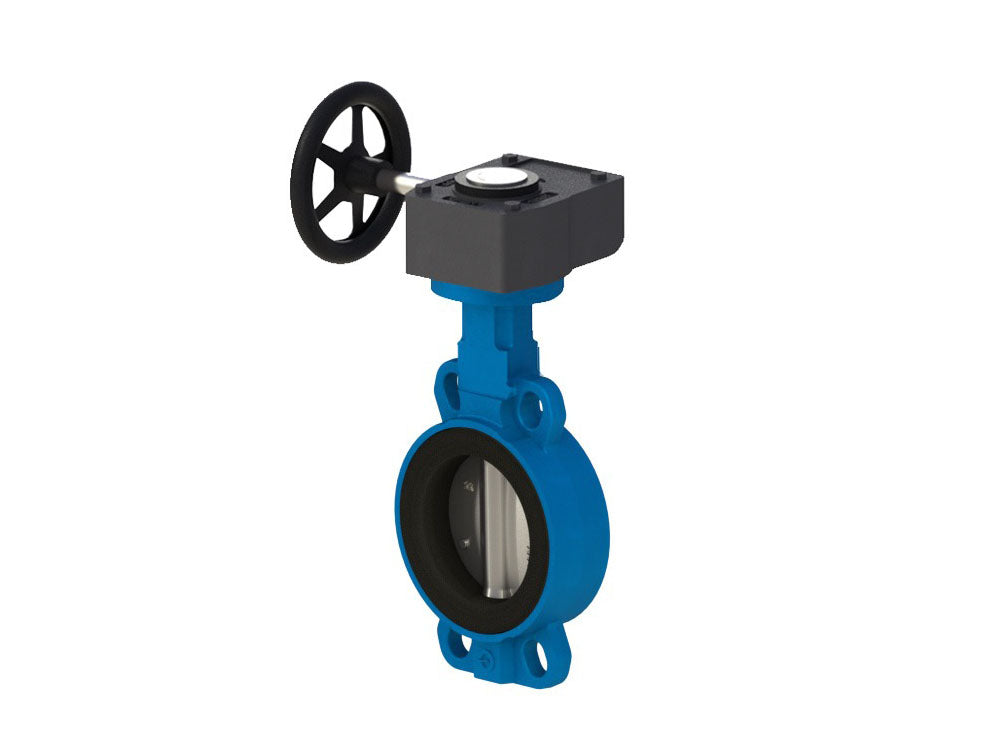

6″ Flomatic SYLAX3, Strong DI body, EPDM vulcanized seat, Stainless Steel stem and disc, 250 PSI bi-directional pressure rating, 220˚F max. temperature rating, NSF/ANSI 61 certified, for use with ANSI 125/150# flanges. Gearbox with hand wheel on ISO 5211 top flange for easy mounting.

Temp Max: 220°F (110°C)
Pressure Max: 250 PSI

Literature
