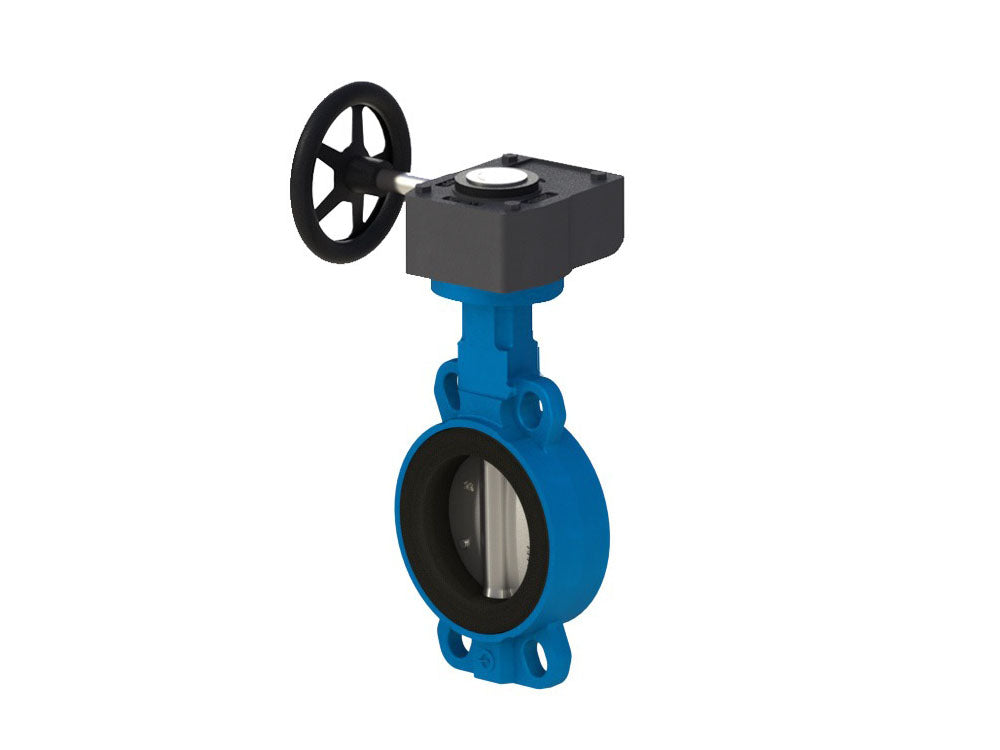

Flomatic Valves – S3W08G – 5″ Model Sylax 3 Wafer Style with Gear

Name: Flomatic Valves – S3W08G – 5″ Model Sylax 3 Wafer Style with Gear
SKU: fd257cc73119
Price: 440.86 USD
Availability: InStock

$440.86

SKU: fd257cc73119 Category: Valves Brand: Flomatic Vales

Description

Description

Flomatic Valves

5” Flomatic SYLAX3, Strong DI body, EPDM vulcanized seat, Stainless Steel stem and disc, 250 PSI bi-directional pressure rating, 220˚F max. temperature rating, NSF/ANSI 61 certified, for use with ANSI 125/150# flanges. Gearbox with hand wheel on ISO 5211 top flange for easy mounting.

Temp Max: 220°F (110°C)
Pressure Max: 250 PSI

Literature
