Flomatic Valves – 2243BT – Model 402BT 5″

Description

Flomatic Valves

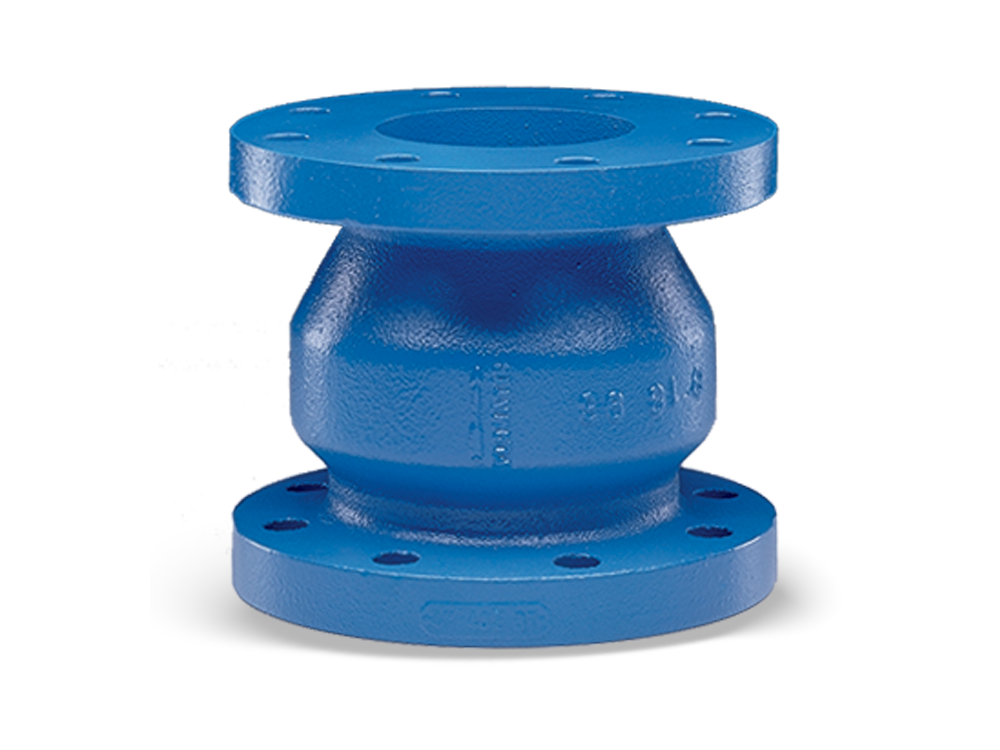

402BT/402BTR/402ST/402STR – Epoxy coated ductile iron silent check globe style, body design for use with class 150 flanges. Unleaded bronze metal to metal seating 2″ – 12″ sizes. Stainless Steel trim and resilient seat standard on 16″, 20″, 24″ sizes (STR Models). Available on other sizes optional, see note below.

Ductile Iron 2″ – 12″ – Max Pressure 300 PSI at 150°F
Ductile Iron 14″ ,16″, 20″, 24″ – Max Pressure 250 PSI at 150°F
Cast Iron 18″- Max Pressure 150 PSI at 150°F
Consult factory for pressure rating standards.

Note: For drip tight EPDM seal, add “R” to end of part number and 10% to list price.

NSF/ANSI 61 and 372 approved. 2″ -12″ ONLY
